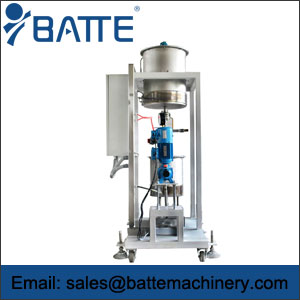

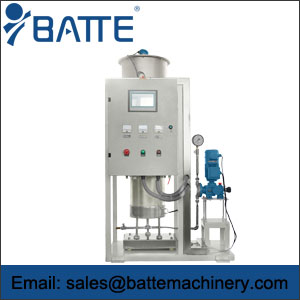

Liquid gravimetric feeder
Liquid gravimetric feeder is a kind of liquid self metering feeder, including liquid gravimetric feeder with ±1% feeding accuracy and liquid gravimetric metering feeder with ±0.5% feeding accuracy, and is suitable for liquid materials.
Liquid gravimetric feeder Application:
liquid materials with normal temperature & requiring heating or insulting
Liquid gravimetric feeder types and parameters:
Feeding Range: 2-8000L/H
Feeding Accuracy: ±1%
Driven system: Servo motor
Mixing Motor Power: 0.75kw
Temperature sensor type: K type thermocouple
Liquid heating power: 2KW (220V)
Batte insulation system can uniformly control the temperature.
|
Type
|
Capacity (L/H)
|
Driving power (kw)
|
Accuracy
|
Driven system
|
|
BAT-LF-PS-50
|
5-50
|
0.25
|
±1%
|
Servo motor
|
|
BAT-LF-PS-100
|
10-100
|
0.37
|
±1%
|
Servo motor
|
|
BAT-LF-PS-200
|
20-200
|
0.37
|
±1%
|
Servo motor
|
|
BAT-LF-PS-300
|
30-300
|
0.55
|
±1%
|
Servo motor
|
|
Type
|
Capacity (L/H)
|
Driving power (kw)
|
Accuracy
|
|
BAT-LF-PS-50
|
5-50
|
0.25
|
±1%
|
|
BAT-LF-PS-100
|
10-100
|
0.37
|
±1%
|
|
BAT-LF-PS-200
|
20-200
|
0.37
|
±1%
|
|
BAT-LF-PS-300
|
30-300
|
0.55
|
±1%
|
Feeding Range: 2-8000L/H
Feeding Accuracy: ±0.5%
Driven system: Servo motor
Mixing Motor Power: 0.75kw
Temperature sensor type: K type thermocouple
Liquid heating power: 2KW (220V)
Batte insulation system can uniformly control the temperature.
|
Type
|
Capacity (L/H)
|
Driving power (kw)
|
Accuracy
|
Driven system
|
|
BAT-MF-PS-50
|
5-50
|
0.25
|
±0.5%
|
Servo motor
|
|
BAT-MF-PS-100
|
10-100
|
0.37
|
±0.5%
|
Servo motor
|
|
BAT-MF-PS-200
|
20-200
|
0.37
|
±0.5%
|
Servo motor
|
|
BAT-MF-PS-300
|
30-300
|
0.55
|
±0.5%
|
Servo motor
|
|
Type
|
Capacity (L/H)
|
Driving power (kw)
|
Accuracy
|
|
BAT-MF-PS-50
|
5-50
|
0.25
|
±0.5%
|
|
BAT-MF-PS-100
|
10-100
|
0.37
|
±0.5%
|
|
BAT-MF-PS-200
|
20-200
|
0.37
|
±0.5%
|
|
BAT-MF-PS-300
|
30-300
|
0.55
|
±0.5%
|
