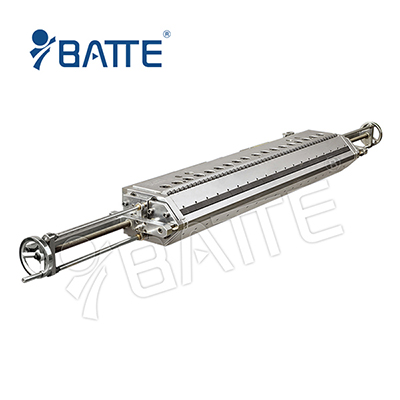

Lamination Film Die
Application field

Packaging/Health industry/Construction industry/car

Technical data
Item Specification
Thickness of the product Thickness:0.002mm or 2μm (rate 5%)
Width of the die Width: 700-4000mm adjustable
Heat Voltage 220V or according your need
Heating way Heating bars made of stainless steel from Italy
Die material 2738 from Germany or P20
Fastening piece High strength at 12.9 grade
Polishing Lips and surface of flowing: 0.02-0.03(μm),Other surfaces: 0.03-0.04(μm).
Chrome thickness 0.035-0.045mm
Surface hardness 60-70HR
Installation according costumer’s request
Item Specification
Thickness of the product Thickness:0.002mm or 2μm (rate 5%)
Width of the die Width: 700-4000mm adjustable
Heat Voltage 220V or according your need
Heating way Heating bars made of stainless steel from Italy
Die material 2738 from Germany or P20
Fastening piece High strength at 12.9 grade
Polishing Lips and surface of flowing: 0.02-0.03(μm),Other surfaces: 0.03-0.04(μm).
Chrome thickness 0.035-0.045mm
Surface hardness 60-70HR
Installation according costumer’s request
