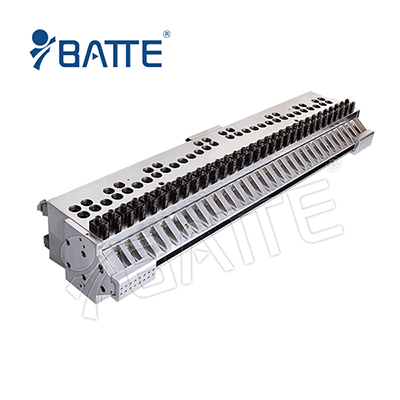

PVC Crust Foam Die
Application field

Transport industry:Ship, plane, bus, train, floor covering, core layer,indoors decoration plate architecture decoration industry Outdoors plate, indoors decoration decoration frame, plate used in dust-free room. Ceiling plate

Advertisement industry:Screen printing, computer engraving, ad. Board, exhibition plate, logo plate

Industrial application:Rot-proof project in chemical industry, thermal shaped part plate for refrigeration warehouse,special cool-keeping project, environmental protection plate

Other applications:Construction mold plate, sports apparatus, aquaculture material, seashore wet-proof facility, water-resistant material, arts material and all sorts of light separation

Technical data
Item Specification
Die steel P20/5CrNiMo
Material PVC
Width of the die 500mm-5000mm
Thickness of the product 2-20mm
Choked flow rope 90°
Way of flow passage clothes rack type
voltage 220V/50hz
Heating type heating inside
Heater element stainless steel heating rod
Mode of connection closed cycled connection
Fastening piece 12.9 high strength
Precision of polishing Polishing precision of the stream surface of the die lip 0.03-0.04(μm)other parts is 0.04-0.05(μm)
Galvanization  the stream surface of the die head are treated by chrome treatment. Thickness 0.03-0.04(μm),hardness: 60-65Rockwellc,the chrome treatment thickness of the ektexine is 0.01-0.02mm.
Installation according costumer’s request
Way of charging central ring charging way
Item Specification
Die steel P20/5CrNiMo
Material PVC
Width of the die 500mm-5000mm
Thickness of the product 2-20mm
Choked flow rope 90°
Way of flow passage clothes rack type
voltage 220V/50hz
Heating type heating inside
Heater element stainless steel heating rod
Mode of connection closed cycled connection
Fastening piece 12.9 high strength
Precision of polishing Polishing precision of the stream surface of the die lip 0.03-0.04(μm)other parts is 0.04-0.05(μm)
Galvanization  the stream surface of the die head are treated by chrome treatment. Thickness 0.03-0.04(μm),hardness: 60-65Rockwellc,the chrome treatment thickness of the ektexine is 0.01-0.02mm.
Installation according costumer’s request
Way of charging central ring charging way
